Division algorithms fall into two main categories.

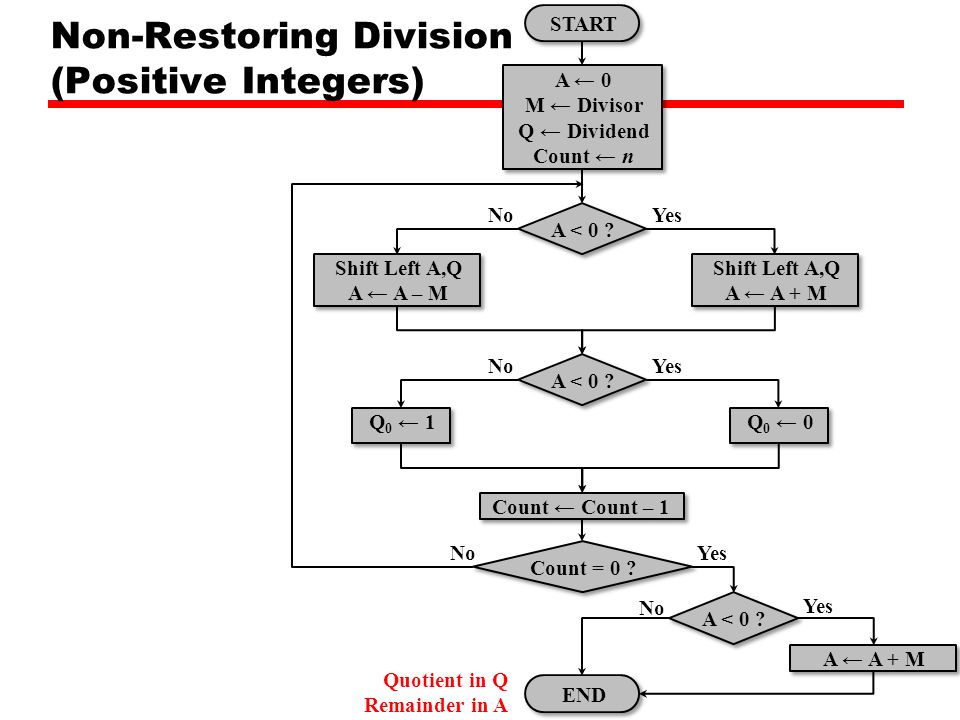

Flowchart of non restoring division algorithm. Restoring division algorithm for unsigned integer. 8086 program to print the table of input integer. Algorithm for non restoring division is given in below image. In this problem dividend a 101110 ie 46 and divisor b 010111 ie 23.

Slow division algorithm are restoring non restoring non performing restoring srt algorithm and under fast comes newton raphson and goldschmidt. They are generally of two type slow algorithm and fast algorithm. Slow division and fast division. Just implementing a non restoring division on int s or char s using perhaps a union to combine two char s into a short for the left shift then just adding or subtracting and looping to get the result as chars would have been shorter and much more readable.

Examples of slow division include restoring non performing restoring non restoring and srt division. 2 at every step the a and q registers together are shifted to the left by 1 bit. Fast division methods start with a close approximation to the final quotient and produce twice as many digits of the final quotient on each iteration. Ii a add the contents of register b to p.

In this article will be performing restoring algorithm for unsigned integer. Also the code is very poorly commented. Binary division method restoring and non restoring division algorithm binary division restoring division algorithm non restoring division algorithm coa restoring. Figure below shows the hardware implementation of restoring binary division.

Set register a dividend 000000 set register q dividend 101110 so aq 000000 101110 q0 lsb of q 0 set m divisor 010111 m 2 s complement of m 101001 set count 6 since 6 digits operation is being done here. A division algorithm provides a quotient and a remainder when we divide two number. Binary division method restoring division algorithm non restoring division algorithm binary division coa binary numbers division flowchart example. If p is positive.

Slow division algorithms produce one digit of the final quotient per iteration. Adding each bit also uses 2 division operations. A variant that skips the restoring step and instead works with negative residuals. 8086 program to sort an integer array in descending order.

Hardware implementation for restoring binary division. Implementation of non restoring division algorithm for unsigned integer. Although the non restoring division algorithm is the fastest and has less complexity than other radix 2 digit recurrent division algorithms there are still some possibilities to enhance its. 8086 program to sort an integer array in ascending order.

1 the divisor is placed in m register the dividend placed in q register. Algorithm for non restoring division is given in below image.
